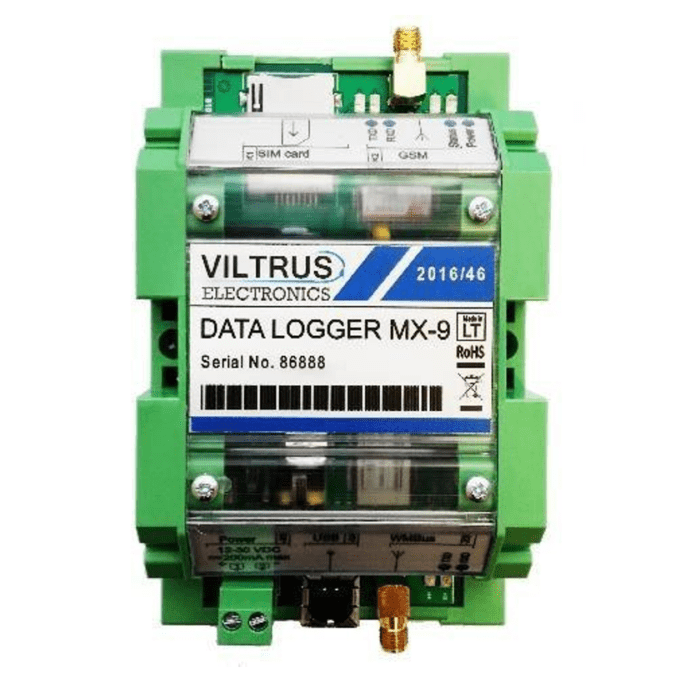

DATA LOGGER MX-9 Mini

MX-9 Mini Wireless M-Bus Data Logger 169/433/868MHz

The MX-9 data logger allows reading of Wireless M-Bus, Modbus and M-Bus devices, and send the data to remote users / server through Modbus GPRS modem or Ethernet. It also provides SMS sending services for alarm events.  Data logger can read Kamstrup, Sensus, DIEHL, Danfoss, Itron, Landis & Gyr and other meters (like exotic meters / industrial meters).

    Download Datasheet
    Download Setup File
    More info

    Application possibilities

    Data Logger MX-9 is dedicated for reading Wireless M-Bus meters, real time logging and analyzing of data. Using GPRS/GSM or Ethernet, logger sends data to remote users / server. MX-9 can also communicate with other controllers and sensors. Device has wide range of optional interfaces and protocols and can read any kind of meters, controllers and sensors equipped with standard protocols. Perfect for smart metering of commercial, residential or industrial buildings.

    Water metering

    Environmental monitoring

    Electricity metering

    Renewable energy monitoring

    Gas metering

    Industrial metering and control

    Heat substation metering

    Wireless M-Bus metering

    Smart house

    Commercial metering

    Device adjustment to client’s needs

    If client needs custom made application or special functions, our R&D department ready to help. We can adjust our devices, include special protocols or interfaces to meet client application’s needs. Also we are ready to adjust our device for working with various meters, flow meters (even exotic ones). If you are not sure if our device can satisfy your needs, feel free to contact us anytime.

    MX-9 can read: Kamstrup, Sensus, Danfoss, L+G, Itron, Diehl, Apataor and other manufacturer’s meters. Also MX-9 can read and controll other controllers, like Danfoss ECL 300.

    Application examples

    Below indicated few samples how MX-9 collects the data from Wireless M-Bus meters / sensors and controllers and sends the data to local or remote users using Modbus protocol via GPRS / GSM or Ethernet. There is so many ways to use our MX-9. Starting from smart metering (from WIreless M-Bus meters), heating substation metering, data acquisition from temperature, pressure sensors, data acquisition from weather stations and sensors, chemical monitoring and telemetry, to smart house telemetry, and scientific device monitoring and telemetry.



    Technical features

    – Possibility to choose interfaces: Wireless M-Bus (433 / 868 MHz), M-Bus, RS232, RS485, Current Loop, Data/Req, USB, GSM/GPRS, Ethernet
    – Reading data from any kind of meters (water, electricity, heat, gas, cooling …) and controllers.
    – Supported protocols: Wireless M-Bus, Modbus RTU, Modbus TCP/IP, M-Bus, IP, ICMP, UDP, TCP, DHCP, PPP, ARP, SNTP, IEC60870-5-104:200 and transparent.
    – Independent data log with real time stamp (Real Time Clock).
    – Wireless M-Bus modes supported: T1, T2, S, S1, R,C,C1,N.
    – Remote communication and updates through GSM/GPRS or Ethernet
    – Galvanically isolated interfaces and power supply
    – SMS sending for alarm events.
    – Additional special transparent protocol data transfer.
    – Power supply for external powering of meters
    – Memory expansion: up to 32 GB using micro SD card



    Did you know?

    – MX-9 can read Kamstrup, Sensus, Diehl, Apator and other meters.

    – MX-9 can read variuos exotic Wireless M-Bus meters.

    – MX-9 can read Enless Wireless sensors and Fast Forward AG Energy Cam.

    Technical specifications
    Description MX-9 Mini Wireless M-Bus Data Logger
    CPU ARM7
    Flash archive storage up to 8 MB, independent data storage without power about 5 years
    SD card support micro SD card up to 8 GB
    Interfaces
    Wireless M-Bus (1 port) up to 250 Wireless M-Bus ( T, S, R, C modes, 169MHz/433MHz/868MHz) devices
    GSM/GPRS 4 band 850/900/1800/1900 MHz
    USB ver. 2,0, type B
    RS485 (1 port) distance up to 1,2 km, max 32 transivers, speed up to 19,2 Kbits/s
    4G 2 band, depending on market 850/1900MHz, 900/2100MHz or 800(850)/2100MHz
    Protocols
    Modbus TCP/IP, IP, ICMP, UDP, TCP, DHCP, PPP, ARP, SNTP, IEC60870-5-104:2000, DynDNS, FTP server, FTP client,

    DNS client, Wireless M-Bus
    General
    Power supply 12-30 VDC
    Over-voltage protection >1000V
    Capacity 300mA max
    Power for external devices 3,7/5/6/8/10 V (<20mA)
    Interface galvanic isolation 500V
    Physical characteristics
    Mounting type on DIN rail
    Protection type IP20
    Climate conditions
    Operating temperature -25 to +65oC
    Storage temperature -40 to +65oC
    Humidity range 5 – 95%, non-condensing
    Programing and updating
    Remote GSM/GPRS, 4G
    Locally USB
    LED indication
    Power
    Serial ports read/write for each port
    GSM/GPRS, 4G modem status
    Other features
    Real time clock +
    M-Bus auto setup +
    Warranty period 2 years
