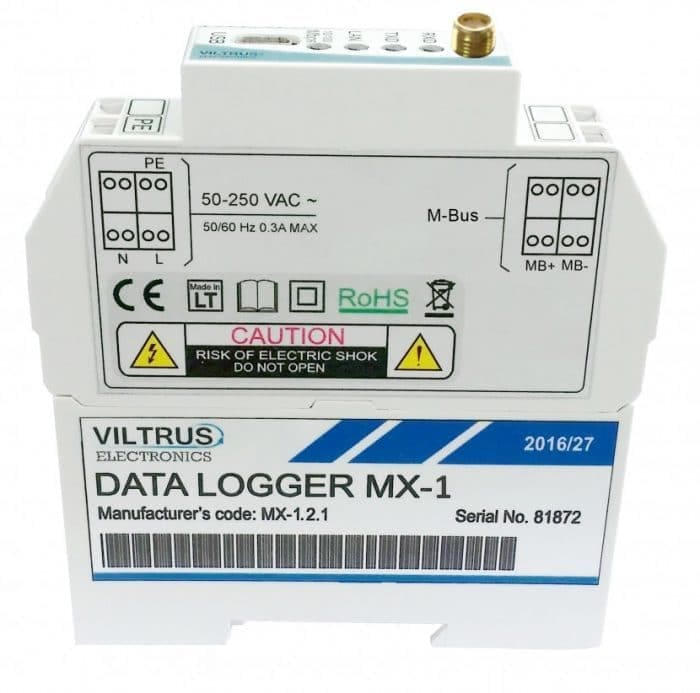

DATA LOGGER MX-1
MX-1 is GPRS Data logger with M-Bus / Modbus compatibility
MX-1 designed for data reading from meters (electricity, heat, water, gas and other) with M-Bus interface (up to 25 any M-Bus devices) or Modbus (RS485) and storing/exchanging data between device and client’s software through GSM/GPR
Application possibilities
Data logger MX-1 is dedicated for real time logging and analyzing of data. Using GPRS/GSM, logger sends data to remote users / server. Perfect for telemetry/monitoring and smart metering.
Water metering
Sensor monitoring
Electricity metering
Renewable energy monitoring
Gas metering
Industrial metering and control
Heat substation metering
Agro monitoring
Smart house
Commercial metering
Device adjustment to client’s needs
If client needs custom made application or special functions, our R&D department ready to help. We can adjust our devices, include special protocols or interfaces to meet client application’s needs. Also we are ready to adjust our device for working with various meters, flow meters (even exotic ones). If you are not sure if our device can satisfy your needs, feel free to contact us anytime.
M-Bus application example
Below is shown MX-1 application for reading M-Bus meters and sending of data to server / remote user via GSM / GPRS.
Modbus application example
Below is shown MX-1 application for reading Modbus meters / devices and sending of data to server / remote user via GSM / GPRS.
– Reading data from any kind of meters (water, electricity, heat, gas, cooling …) via M-Bus or Modbus
– Supported protocols: Modbus RTU, Modbus TCP/IP, MQTT, M-Bus, IP, ICMP, UDP, TCP, DHCP, PPP, ARP, SNTP, IEC60870-5-104:200 and transparent
– Supported interfaces: M-Bus or Modbus (RS485), GSM/GPRS, USB
– Remote communication and updates through GSM/GPRS
– Memory expansion: up to 8 GB using micro SD card
– Galvanically isolated interfaces and power supply
– Power supply: 50-250VAC (50-60Hz)
– SMS sending for alarm events
– Additional special transparent protocol data transfer
– Mounting type: on DIN rail
– MQTT internet of things (IoT) protocol
| Description | Data Logger MX-1 technical specifications |
|---|---|
| CPU | ARM Cortex M4 |
| Flash | archive storage up to 8 MB, independent data storage without power about 5 years |
| External memory | up to 8 GB micro SD card |
| GSM/GPRS | 4 band 850/900/1800/1900 MHz |
| M-Bus | up to 25 M-Bus devices |
| USB | mini USB type B, ver. 2,0 |
| Protocols | Modbus RTU, Modbus TCP/IP, IP, ICMP, UDP, TCP, DHCP, PPP, ARP, SNTP |
| Power supply AC | 50-250V ~ 50/60Hz |
| Capacity | 300mA MAX |
| Over-voltage protection | >1000V |
| Power consumption | < 9VA |
| Dimensions | 18x85x97 mm |
| Weight | 105 g |
| Mounting type | on DIN rail |
| Protection type | IP20 |
| Operating temperature | -25 to +60oC |
| Real time clock | Yes |
| Certifications | CE, RoHS |
| Warranty period | 2 years |
